AIR FILTER

High-quality MANN-FILTER air filters for clean air intake and optimum protection for your engine, mass air flow sensor & other sensitive components / They meet requirements of modern engine technology. Highest dirt holding capacity and dirt separation efficiency, low flow resistance and high pleat stability ensure functional reliability during the entire service interval.

• A = 118 mm; B = 67 mm; C = 67 mm; H = 134 mm
• Picolino

GTIN Code: 4011558178109

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

• A = 93 mm; B = 62 mm; C = 71 mm; G = 1-12 UNF; H = 210 mm

GTIN Code: 4011558714307

wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

• A = 76 mm; B = 62 mm; C = 71 mm; G = M24x2; H = 190 mm

GTIN Code: 4011558728601

LUBE FILTER, SPIN-ON FULL FLOW

Attributes
Outer Diameter 136 mm (5.35 inch)
Thread Size 1 1/2-16 UN
Length 308 mm (12.13 inch)
Gasket OD 110 mm (4.33 inch)
Gasket ID 100 mm (3.94 inch)
Efficiency 99% 40 micron
Media Type Cellulose
Collapse Burst 10.3 bar (149 psi)
Type Full-Flow

AIR FILTER, PRIMARY RADIALSEAL

Attributes
Overall Length 517.8 mm (20.39 inch)
Outer Diameter 313.4 mm (12.34 inch)
Inner Diameter 177.6 mm (6.99 inch)
Length 524 mm (20.63 inch)
Efficiency 99.9
Efficiency Test Std ISO 5011
Family FRG
Primary Application TEREX 15270188
Type Primary
Style Radialseal
Brand RadialSeal™
Media Type Cellulose

HYDRAULIC FILTER, SPIN-ON DURAMAX

Attributes
Outer Diameter 121 mm (4.76 inch)
Thread Size 1 3/4-12 UN
Length 295.4 mm (11.63 inch)
Gasket OD 86 mm (3.39 inch)
Gasket ID 79 mm (3.11 inch)
Efficiency Beta 2 7 micron
Efficiency Beta 200 18 micron
Efficiency Beta 1000 23 micron
Style Spin-On
Series HMK05/25
Brand Duramax®
Media Type Synthetic

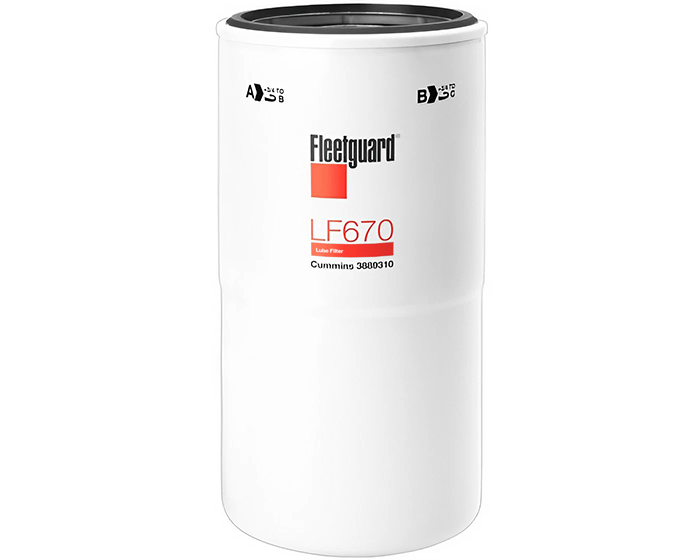

Lube Filter, Spin-On

Thread Size1.00 1/2-12 UNF 2BGasket Inside Diameter3.84 inchLargest OD4.74 inchHydrostatic Burst Minimum246.50 psiPrimary Particle Efficiency24.60 micron (c) @ 95%Gasket OD4.35 inchLength9.81 inchMedia TypeCelluloseRated Flow151.40 L/m

Lube Filter, Spin-On

Thread Size1.00 1/2-12 UNF 2BGasket Inside Diameter3.89 inchLargest OD4.74 inchHydrostatic Burst Minimum246.50 psiRated Flow84.00 L/mGasket OD4.36 inchLength11.31 inchMedia TypeCellulosePressure ValveNoPrimary Particle Efficiency24.60 micron (c) @ 95%

Lube Filter, Spin-On

Thread Size1.00 1/2-16 UNF 2BGasket Inside Diameter3.72 inchLargest OD5.38 inchRated Flow106.00 L/mGasket OD4.29 inchLength12.19 inchHydrostatic Burst Minimum199.95 psiPrimary Particle Efficiency25.00 micron (c) @ 99.75%

AIR FILTER

High-quality MANN-FILTER air filters for clean air intake and optimum protection for your engine, mass air flow sensor & other sensitive components / They meet requirements of modern engine technology. Highest dirt holding capacity and dirt separation efficiency, low flow resistance and high pleat stability ensure functional reliability during the entire service interval.

• A = 118 mm; B = 67 mm; C = 67 mm; H = 134 mm
• Picolino

GTIN Code: 4011558178109

MANN-FILTER oil filters: Top filtration performance and optimal cleaning protect the engine against wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

• A = 93 mm; B = 62 mm; C = 71 mm; G = 1-12 UNF; H = 210 mm

GTIN Code: 4011558714307

wear caused by impurities and combustion residues in the oil. Filter media and high-quality sealing materials that are individually tailored to the intended application offer optimum protection over the entire maintenance interval.

• A = 76 mm; B = 62 mm; C = 71 mm; G = M24x2; H = 190 mm

GTIN Code: 4011558728601
