Slim 12.5rsi Trail Edition

6.8 Tonnes Electric Recovery Winch

• Reliable electric winch for commercial, industrial and severe duty applications
• 5,250w/24V series wound motor.
• 10 equally positioned pin holes with a ergonomic T-handle make it possible to reposition in 36 degree increments.
• Patented over-loading current protector can be programmed by the winch specification and pulling requirements which limits the winch's maximum pulling power.
• LED Indicator displays detailed winch status while operating.
• U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
• Easy to turn the T-handle for rapid wire rope payout.
• Submersible sealed contactor handles high amps and allows higher duty cycle.
• Meets CE Machinery Directive 2006/42/EC, and EN 14492-1 standards

998 kg Heavy Duty Hoist

• Provides an answer to the health and safety recommendations for manual lifting
• High efficient low amp. draw and sealed permanent magnet motor.
• Lightweight and compact design is ideal for easy installation.
• Mechanical cone brake and permanent motor dynamic brakes together for safe, controlled load.
• Waterproof industrial remote control with 5 m lead
• Full metal 3 stage planetary gear train for greater pulling force.
• Submersible sealed contactor handles high amps and allows higher duty cycle.
• In compliance with standard of ASME B30.5 for D/d≥18 and rope safety factor ≥3.5

900 kg Hydraulic Hoist

• Internally lubricated for reliable power and an exceptionally long service life.
• Compact, hardened and high efficiency gear trains reduce power loss and placed inside the drum.
• Multi-Disc Brake (MDB) patented and two ways counter-balance valve together for holding full load.
• The normal lifting capacity is rated at the top layer of wire rope. It always lifts its rated load no matter what layer of wire rope it is.
• The drum is dimensioned to obtain a minimum D/d ratio of 18:1 with a 5:1 minimum safety factor at the rated load.
• The hoist meets the requirement of FEM9.511 covering rating and classification and FEM 1001 standard for the calculation of lifting equipment.
• Compliance with international standards such as ASME B30.7 and, CE Machinery Directive 2006/42/EC

• 24VDC severe duty winch rated at 22.000lb pulling meets or exceeds your expectations
• Waterproof and dustproof construction
  - Potted contactor and motor provide complete protection from water penetration and allow dependable operation in up to 1.8meter of water
  - Rubber seals at motor and gear housing joints for independent water protection
  - Double lip and spring seal at drum support racks
  - Industrial duty remote control with twist-on connector to provide total protection from water
• Water-proof remote control with thermometric LED indicator alerts when receiving a warning signal from the motor over-heated
• Tough aluminum die cast housings withstand strength of 2times winch line pull at least
• U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slippage
• Corrosion resistance 720hr
• Meets international standards of CE Machinery Directive 2006/42/CE, CE Electromagnetic Compatibility Directive 2014/30/EU, and SAE J706 Surface Vehicle standard 2003-08 rev

6,000 lb Utility Duty Winch

• Compact and light weight allows a wide range of application. For example: crane hoist, gear motor, lifting winch, boat trailer winch, equipment lift, lifter, rack lift, cargo lift
• High torque permanent magnet motor delivers heavy line pull at lower amp and slip free dynamic brake.
• Compound gear wheel gearbox delivers the most reliable and durable performance of winch under the most rugged conditions.
• Sliding pin and ring gear clutch for rapid free spool
• Manual override in case power is lost
• Double mechanical ratchets brake and motor dynamic brake ensure holding the load without slippage.
• Built-in digital signal two way wireless remote control and waterproof remote control w/5 m (17’) cord.
• Intelligence Dashboard (IDB) functions:
  - On/Off switch prevents the vehicle battery from draining when not in use.
  - With LED fan-shaped battery life indicator.
  - Wireless signal icon that is continuously illuminated to confirm the wireless remote is paired with the winch.

Introducing the COMEUP SOLO 9.5rs Trail Edition, the ultimate winch designed for overland expedition and packed with Trail Edition features includes the innovative BossHook M and a specialized winch fuse kit for superior functionality and protection.

• Control pack equipped with on-top display screen shows battery level and offers solenoid malfunction alarm function.
• Newly designed wireless and wired controllers offer better holding and reliable operation. Wired controller has magnet design, allowing it to put on idle vehicle body.
• The U.S., Germany, U.K., France, etc., patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.
• Meets SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2014/30/EU.
• BossHook M made of strong SCM440 alloy steel, MBS14,500 KG.
• The Fuse Kit is designed to protect the winch motor and controls from damage caused by Amperage overload or short circuit.

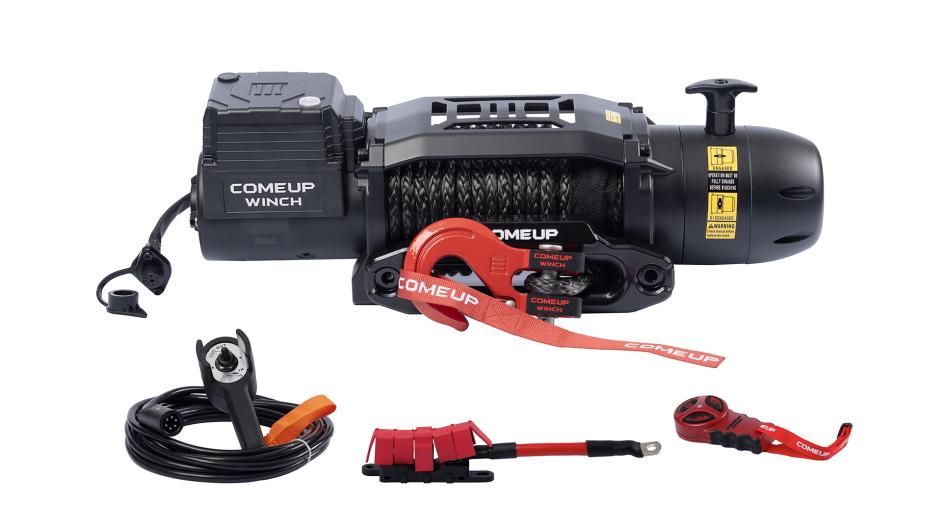

Introducing the COMEUP Seal 16.5rsi Trail Edition, the ultimate winching solution designed for unparalleled ease of installation and equipped with exclusive Trail Edition features for enhanced functionality.
Firstly, as a control box integrated winch, the Seal 16.5rsi sets a new standard for simplicity in installation. By integrating the control box directly into the winch design, installation becomes a breeze, streamlining the setup process and saving you valuable time and effort.
Secondly, the Seal 16.5rsi proudly bears the distinction of being the Trail Edition, which includes our innovative BossHook L and a specialized winch fuse kit. The BossHook L revolutionizes recovery operations with its advanced design, providing superior attachment points for secure and efficient winching. Additionally, the inclusion of the winch fuse kit ensures optimal performance and protection for your winch system, enhancing reliability and peace of mind on the trail.

9.07 Tonnes Hydraulic Recovery Winch

• Powered by a PTO (power take off unit) driven pump with variable recovery speeds for high working rate
• 155.7 cm3/rev highly efficient and constant operating torque motor with 9,070 kg / 20,000 lb capacity
• Hardened 2 stage planetary gear train with 30:1 gear ratio provides faster line speed
• Built-in air clutch for rapid wire rope payout
• The Multi-Disc Brake (MDB) patented for holding full load
• Great for severe duty trailers, roll-back carriers, and commercial recovery application
• Roller fairlead, cable tensioner and two ways counterbalance valve supplied
• Meets SAE J706 revised AUG2003, CE Machinery Directive 2006/42/EC and EN 14492-1 Power Driven Winches.

10,000 lb Hydraulic Recovery Winch

• Powered by an onboard hydraulic pump or PTO for variable recovery speeds for high working rate.
• 5.9 in3 / rev highly efficient and constant operating torque motor with 10,000 lb capacity.
• Hardened 2 stage planetary gear train with 16:1 gear ratio provides faster line speed.
• Turn clutch by a ergonomic T-handle for rapid wire rope payout.
• Drag brake and over-center valve provided for holding full load.
• Great for severe duty trailers, roll-back carriers, and commercial recovery application.
• Meets SAE J706 revised AUG2003, CE Machinery Directive 2006/42/EC and EN 14492-1 Power Driven Winches.

6.8 Tonnes Electric Recovery Winch

• Reliable electric winch for commercial, industrial and severe duty applications
• 5,250w/24V series wound motor.
• 10 equally positioned pin holes with a ergonomic T-handle make it possible to reposition in 36 degree increments.
• Patented over-loading current protector can be programmed by the winch specification and pulling requirements which limits the winch's maximum pulling power.
• LED Indicator displays detailed winch status while operating.
• U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
• Easy to turn the T-handle for rapid wire rope payout.
• Submersible sealed contactor handles high amps and allows higher duty cycle.
• Meets CE Machinery Directive 2006/42/EC, and EN 14492-1 standards

998 kg Heavy Duty Hoist

• Provides an answer to the health and safety recommendations for manual lifting
• High efficient low amp. draw and sealed permanent magnet motor.
• Lightweight and compact design is ideal for easy installation.
• Mechanical cone brake and permanent motor dynamic brakes together for safe, controlled load.
• Waterproof industrial remote control with 5 m lead
• Full metal 3 stage planetary gear train for greater pulling force.
• Submersible sealed contactor handles high amps and allows higher duty cycle.
• In compliance with standard of ASME B30.5 for D/d≥18 and rope safety factor ≥3.5

900 kg Hydraulic Hoist

• Internally lubricated for reliable power and an exceptionally long service life.
• Compact, hardened and high efficiency gear trains reduce power loss and placed inside the drum.
• Multi-Disc Brake (MDB) patented and two ways counter-balance valve together for holding full load.
• The normal lifting capacity is rated at the top layer of wire rope. It always lifts its rated load no matter what layer of wire rope it is.
• The drum is dimensioned to obtain a minimum D/d ratio of 18:1 with a 5:1 minimum safety factor at the rated load.
• The hoist meets the requirement of FEM9.511 covering rating and classification and FEM 1001 standard for the calculation of lifting equipment.
• Compliance with international standards such as ASME B30.7 and, CE Machinery Directive 2006/42/EC
